Diego Celis et al. Bruno Alvares de Azevedo Gomes Ivan Ibanez Pedro Nieckele Azevedo … Pedro Soares Teixeira Angela Ourivio Nieckele
Abstract
Backgroud
Transcatheter aortic valve replacement (TAVR) can reduce mortality among patients with aortic stenosis. Knowledge of pressure distribution and shear stress at the aortic wall may help identify critical regions, where aortic remodeling process may occur. Here a numerical simulation study of the influence of positioning of the prosthetic valve orifice on the flow field is presented.
Objective
The present analysis provides a perspective of great variance on flow behavior due only to angle changes.
Methods

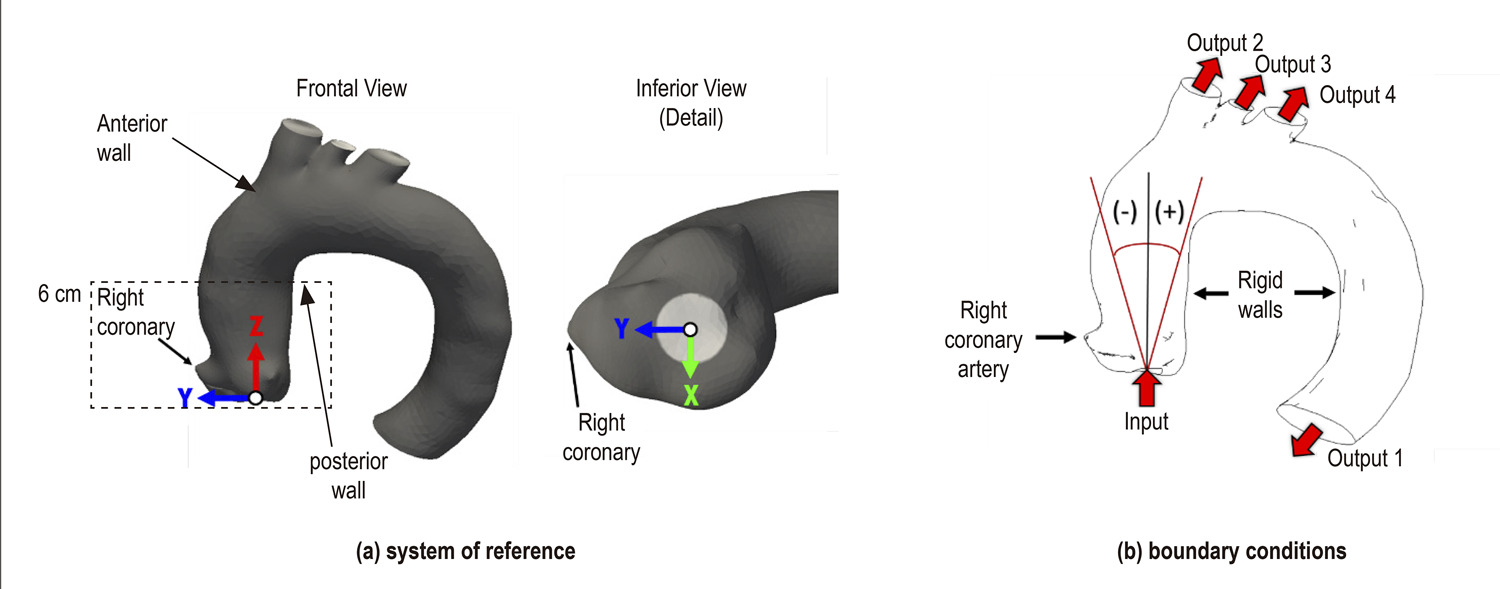

A 3D model was generated from computed tomography angiography of a patient who had undergone a TAVR. Different mass flow rates were imposed at the inlet valve.
Results
Small variations of the tilt angle could modify the nature of the flow, displacing the position of the vortices, and altering the prerssure distribution and the location of high wall shear stress.
Conclusion
These hemodynamic features may be relevant in the aortic remodeling process and distribution of the stress mapping and could help, in the near future, the optimization of the percutaneous prosthesis implantation. (Arq Bras Cardiol. 2020; [online].ahead print, PP.0-0)
